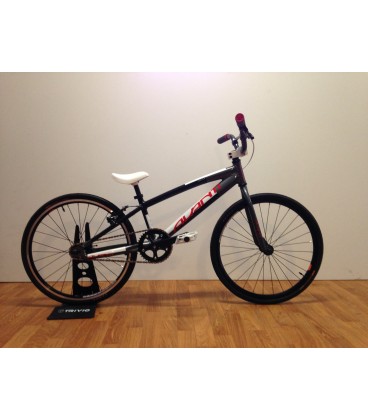

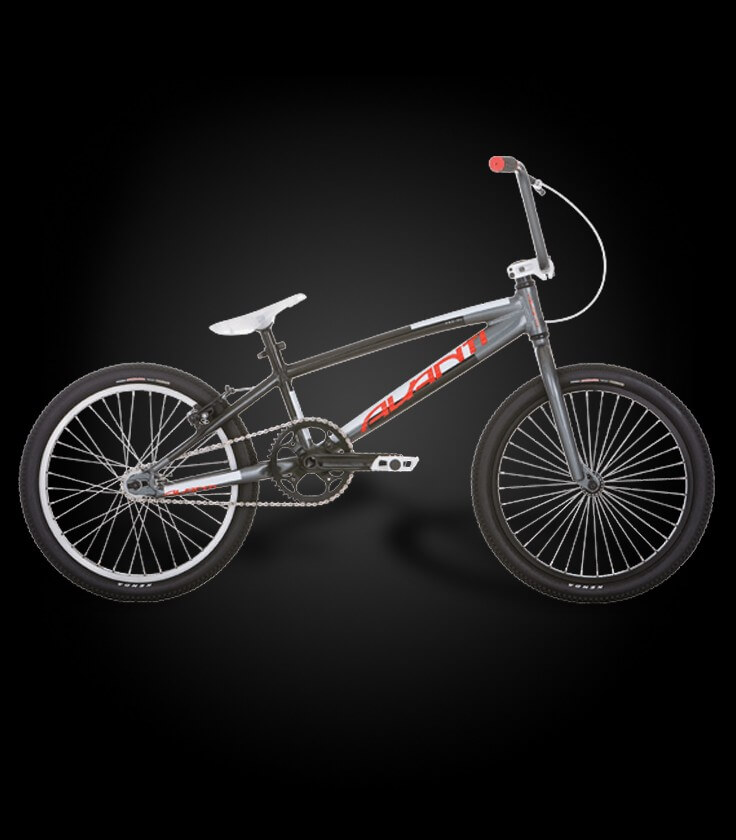

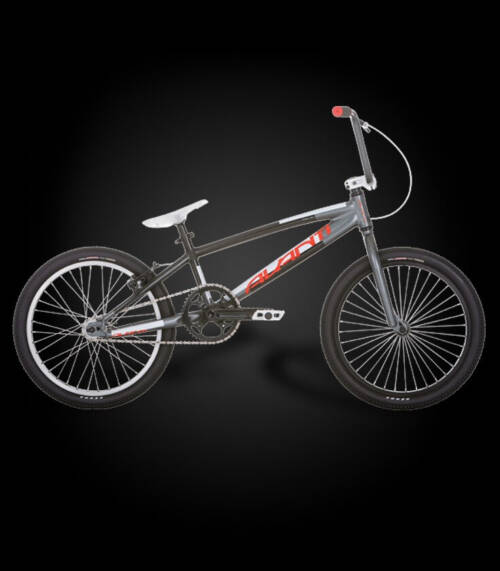

Avanti junior met 3 piece crank aluminium BMX frame dubbelwandige velgen industriële lagering voor kids van 7-9 jaar
Beschrijving
| Category | BMX |
 |
|
| Family | BMX Racing |
|
|
| Model | Junior |
|
|
| Sizes | 18.4″ Top Tube |
|
|

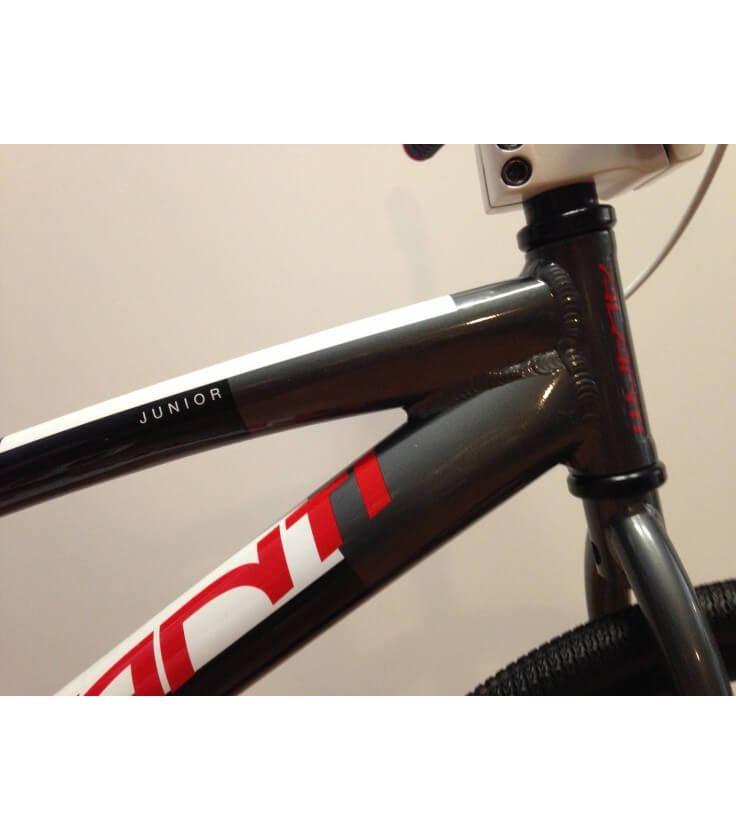

| Frame | 6061 Alloy ADT Race frame with Internal Brake Cable, Euro BB and Integrated Chain Tensioners |
|
|
| Fork | Junior Cr-Mo Race Fork |
|
|

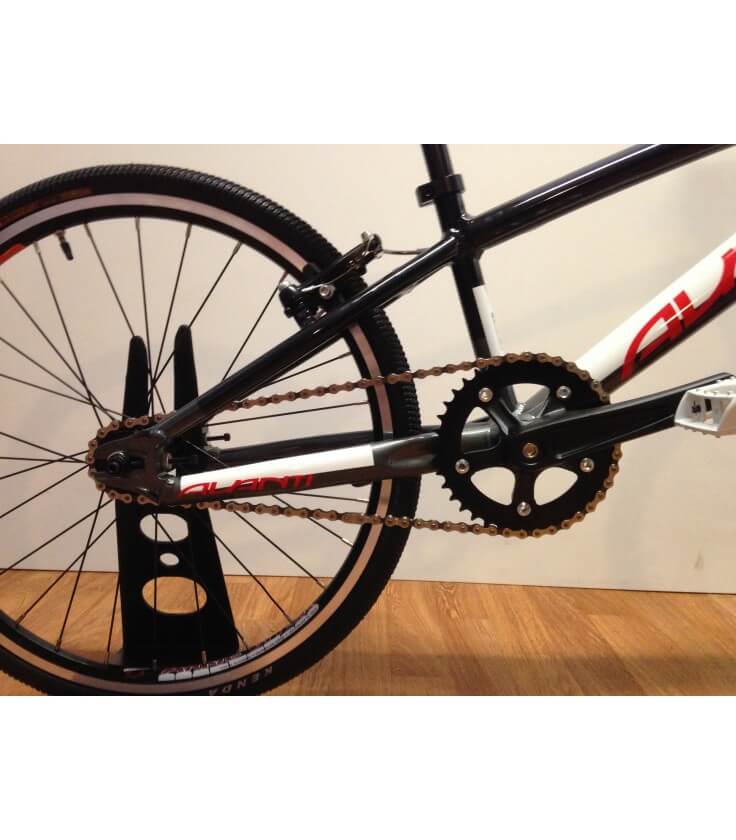

| Crankset | Junior Alloy Race Cranks 150mm |
|
|
| Brakes | Caliper Front, Tektro Alloy V-Brake Rear |
|
|
| Brake Levers | Tektro Alloy Jr Lever |
|
|
| Wheelset / Rims | Alienation Anklebiter 28H |
|
|
| Hubs | Alloy Sealed Cr-Mo Hollow Axle Front, Alloy Race Flip Flop Sealed Cr-Mo Axle Rear |
|
|
| Spokes | 14 Gauge Stainless Steel |
|
|
| Cassette | 16T Freewheel |
|
|
| Handlebar | Junior Race Alloy 4″ Rise/ 23.5″ Wide |
|
|
| Handlebar Stem | Jr Race Ahead, 1″x30mm |
|
|
| Headset | 1″ Ahead |
|
|
| Grips | Mini |
|
|
| Pedals | Alloy Platform w/Cr-Mo Axles |
|
|
| Tyres | Kenda Kompact 20 x 1-1/8″ |
|
|
| Saddle | Mini Race with integrated Seat Post |
|
|
| Seat Post | Mini Race with integrated Seat Post |
|
|
| Bottom Bracket | Cartridge Sealed Bearing |
|
|
| Chain | KMC Z-410 |
|
|
| EXTRAS | Integrated Chain Tensioners |
| 1 | Seat Tube Length (C-Top) | 235 |
 |
||
| 2 | Top Tube Length | 467 |
|
||
| 3 | Head Tube Length | 100 |
|
||
| 4 | Head Angle | 73 |
|
||
| 5 | Seat Angle | 71 |
|
||
| 6 | BB Drop | (+24) |
|
||
| 7 | Chainstay Length | 325 |
|
||
| 8 | Wheelbase | 856 |
MAATTABEL FRAMES
|
|
|||||
| Leeftijd | Lengte CM | Frame | Crank | Verhouding | |
|
|
|||||
 |
|||||
| 4-5 | 100-115 | Micro – 42,5 cm | 130 – 135 mm | 34 x 16T | |
|
|
|||||
| 5-7 | 115-125 | MINI – 44,5 cm | 140 – 145 mm | 36 x 16T | |
|
|
|||||
| 7-9 | 120-138 | JUNIOR – 47,0 cm | 145 – 155 mm | 35 x 15T | |
|
|
|||||
| 9-11 | 137-156 | EXPERT – 49,5 cm | 160 – 165 mm | 37 x 15T | |
|
|
|||||
| 10-13 | 148-168 | EXPERT XL – 52,0 cm | 165 – 170 mm | 38 x 15T | |
|
|
|||||
| 13-15 | 164-175 | PRO – PRO L – 53,0 cm | 170 – 175 mm | 38 x 14T | |
|
|
|||||
| 16-99 | 170-180 | PRO XL – 54,0 cm | 170 – 180 mm | 43 x 16T | |
|
|
|||||
| 16-99 | 176-195 | PRO XXL – 55,0 cm | 175 – 180 mm | 44 x 16T | |
